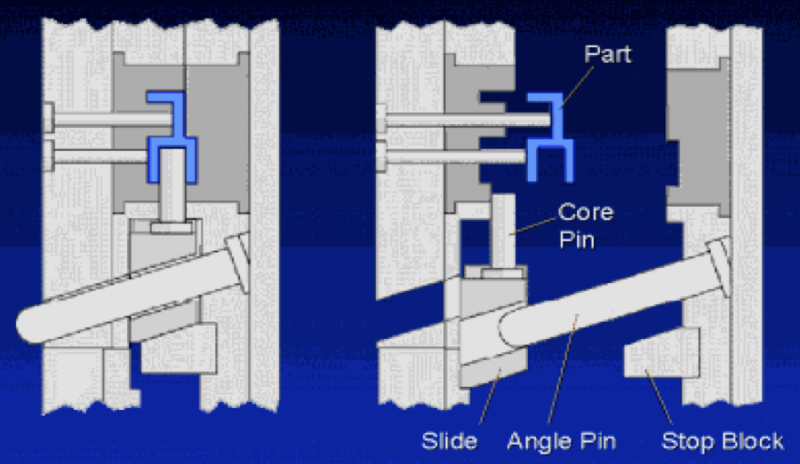

Hello, I posted a few pictures of 3d printed models of what exactly I am trying to design a injection mold for. Its a 2 inch tall by 1 inch wide end cap with a 3/8 hole threw the side and also threw the bottom. This introduced me to some engineering challenges as it can not split apart in a regular mold. Came upon the conclusion I need some sort of 3 part core pulling mold. Looking for advice on how you would design such a mold and what would be the easiest and simplest mold to machine. I included a picture of a slide pulling mold I took some inspiration from. Does anyone know of a better design?
